Render of a commercial podium with shop fronts and a palm-lined plaza below residential towers.
Street-level view of the commercial podium, plaza and towers

Kish Paradise III, mixed-use complex

Role
Design assistant
Year
2020
Firm
Kish Paradise Co.

A mixed-use tourist destination on Kish Island: residential towers, commercial space and two hotels around a central public lake, with a private plaza on the roof garden.

The brief asked for a livable public place next to a tranquil private one, designed for a hot, humid climate and the context of the site.

Site and climate
The complex sits at the highest point on the island so residents can see the sea. Two levels of commercial space, with upper floors stepped back, keep street views at a human scale. Shade from trees, buildings and other elements was calculated to make outdoor spaces comfortable.
Public and private
Shops line most of the facade to draw people in and support a lively evening, with lighting for neighbourhood safety. Separate entrances divide the plaza level from the public open space.
Residential towers
Two tower layouts, octagonal and rectangular, are drawn as typical floor plans with elevations.
Render of residential towers around a central lake, with a glass pavilion and landscaped terraces under a cloudy sky.
Residential towers around the central lake
Aerial view of a mixed-use complex of residential towers around a central lake, with orange labels for each zone.
Aerial view: central yard, residential, commercial, hotel and plaza
Exploded axonometric diagram showing residential towers above plaza, commercial, lake and two parking levels.
Exploded axonometric: residential, plaza, commercial and lake, and two parking levels

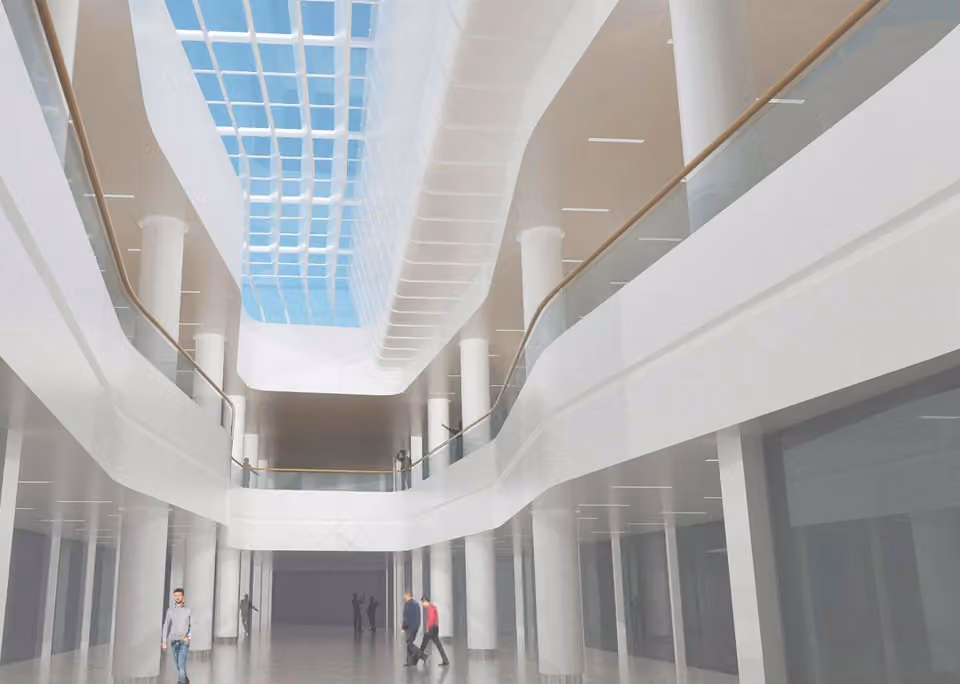

Interior of a white atrium with a skylight, curved balustrades and slender columns.
Atrium interior, 2020

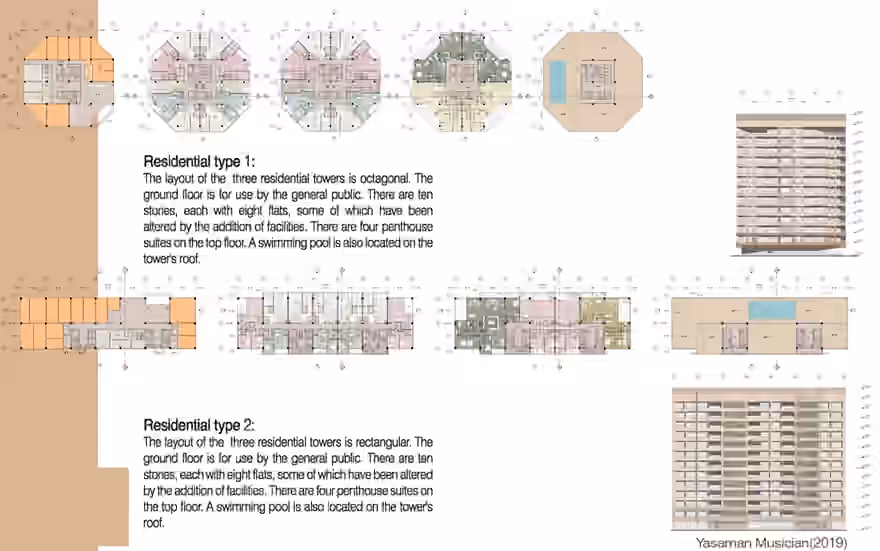

Typical floor plans and elevations of two residential tower layouts, one octagonal and one rectangular, with a rooftop pool plan.
Residential tower plans and elevations: an octagonal layout and a rectangular layout
